What is the Arduino Pro Mini and How Can I Use It in My Projects?
The Arduino Pro Mini is a small, low-cost, and highly versatile microcontroller board that is ideal for embedded projects and compact electronics. It is a popular choice among hobbyists and professionals due to its compact size and powerful performance. If you're a beginner or an experienced maker looking to build a compact IoT device or a sensor-based project, the Arduino Pro Mini is a great option. Here's how you can use it effectively. Answer: The Arduino Pro Mini is a compact microcontroller board suitable for embedded and DIY projects. It is ideal for users who need a small, low-power board with enough processing power for basic to intermediate tasks.
- Arduino Pro Mini
- A small, low-cost microcontroller board based on the ATmega328P or ATmega168 microcontroller. It is commonly used in embedded systems and DIY electronics.

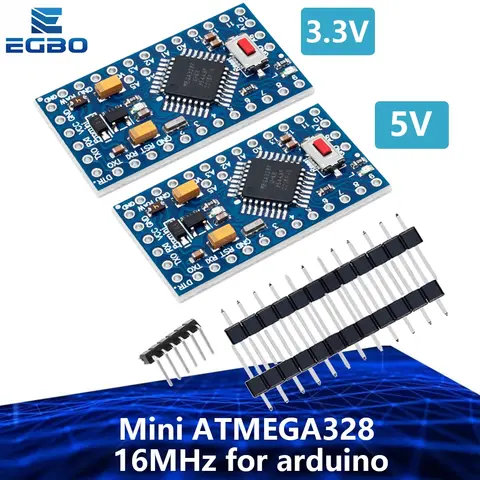

- Arduino Pro Mini 3.3V
- A version of the Arduino Pro Mini that operates at 3.3 volts, making it suitable for low-power applications and battery-powered devices.
- Arduino Pro Mini 5V
- A version of the Arduino Pro Mini that operates at 5 volts, ideal for projects that require higher voltage compatibility with other components.
- Choose the right version: Decide whether you need the 3.3V or 5V version of the Arduino Pro Mini based on your project requirements.
- Connect to a programmer: Use an FTDI programmer or an Arduino Uno as an ISP to upload code to the Pro Mini.
- Write and upload code: Use the Arduino IDE to write your sketch and upload it to the board via the programmer.
- Integrate with sensors and modules: Connect sensors, actuators, or communication modules like Bluetooth or Wi-Fi to the Pro Mini for expanded functionality.
How Can I Program the Arduino Pro Mini Without an Official USB Port?
The Arduino Pro Mini does not have a built-in USB port, which can be a challenge for beginners. However, with the right tools and setup, programming the board is straightforward. Answer: You can program the Arduino Pro Mini using an FTDI programmer or an Arduino Uno configured as an ISP. Both methods are reliable and commonly used in the maker community.
| Method | Required Tools | Steps |
| FTDI Programmer | FTDI Breakout Board, USB Cable | - Connect the FTDI board to the Pro Mini using the correct pinout (TX, RX, GND, VCC, DTR).
- Install the FTDI drivers on your computer.
- Select the correct board and port in the Arduino IDE.
- Upload your sketch.
|
| Arduino as ISP | Arduino Uno, Jumper Wires | - Connect the Arduino Uno to the Pro Mini using the ISP pinout (MOSI, MISO, SCK, RESET, VCC, GND).
- Upload the ArduinoISP sketch to the Uno.
- Select the Arduino Pro Mini board and the Arduino as ISP programmer in the Arduino IDE.
- Upload your sketch to the Pro Mini.
|
Both methods are effective, and the choice depends on what tools you already have available. The FTDI method is faster and more convenient for frequent use, while the Arduino as ISP method is a good alternative if you don’t have an FTDI board.
What Are the Key Differences Between the Arduino Pro Mini and Other Arduino Boards?
When choosing between the Arduino Pro Mini and other Arduino boards like the Uno or Nano, it's important to understand the differences in size, power consumption, and functionality. Answer: The Arduino Pro Mini is smaller, consumes less power, and is more cost-effective than the Arduino Uno or Nano, but it lacks built-in USB and a voltage regulator.
| Feature | Arduino Pro Mini | Arduino Uno | Arduino Nano |
| Size | Very compact (18mm x 33mm) | Larger (68.6mm x 53.4mm) | Compact (18mm x 45mm) |
| Power Consumption | Low power (3.3V or 5V versions) | Higher power consumption | Low to moderate |
| USB Port | No built-in USB | Yes | No built-in USB |
| Price | Very affordable | More expensive | Affordable |
| Use Case | Embedded systems, battery-powered devices | General-purpose projects | Compact projects with USB |
The Arduino Pro Mini is best suited for projects where size and power efficiency are critical. If you need a board with a built-in USB port and more I/O pins, the Arduino Uno or Nano may be a better choice.
What Do Users Say About the Arduino Pro Mini and Related Products?
The Arduino Pro Mini has a strong reputation in the maker community for its reliability, affordability, and versatility. Many users have shared their experiences using the board in various projects. Answer: Users generally praise the Arduino Pro Mini for its compact size, low power consumption, and affordability. However, some mention the lack of a built-in USB port as a minor inconvenience. Here are some common user feedback points: - Positive Feedback: - The Arduino Pro Mini is perfect for my weather station project. It's small and uses very little power. - I used the
Arduino Pro Mini 3.3V in a battery-powered sensor node. It works great with a LiPo battery. - The
Arduino Pro Mini shield helped me add Wi-Fi to my project without taking up much space. - Constructive Feedback: - I had to use an FTDI programmer to upload code, which was a bit of a learning curve at first. - The
Arduino Pro Mini 128 version is a bit harder to find, but it's worth the effort for low-power applications. Users also frequently mention related products such as the
Arduino Pro Mini programmer, Arduino Pro Mini case, and Arduino Pro Mini v1.3. These accessories help improve the usability and durability of the board in real-world applications.
