What is a Mach3 Controller and How Does It Work?
The
Mach3 Controller is a powerful and versatile device used primarily in CNC (Computer Numerical Control) systems to manage and execute machine tool operations. It acts as the brain of the CNC system, translating G-code instructions into precise motor movements.
Answer: A Mach3 Controller is a hardware device that works in conjunction with the Mach3 software to control CNC machines. It processes commands and sends signals to stepper or servo motors to move the machine's axes accurately.
- Mach3 Controller
- A hardware device used in CNC systems to control machine movement based on G-code instructions.
- Mach3 Software
- PC-based software that communicates with the Mach3 Controller to execute CNC operations.
- CNC Machine
- A machine tool that is controlled by a computer to perform precise cutting, drilling, or engraving tasks.
The Mach3 Controller is often used in DIY CNC setups, such as routers, lathes, and 3D printers. It supports up to six axes and can be connected via USB or parallel port. The
Mach3 Controller Board is a key component that handles signal processing and motor control. Here’s how it works in a typical setup:
- Design a part using CAD software and generate G-code.
- Load the G-code into the Mach3 software on a PC.
- Connect the Mach3 Controller Box to the PC and the machine’s motors.
- Run the program, and the controller sends signals to the motors to move the machine precisely.
In my experience, the
Mach3 USB Controller is a popular choice for users who want a plug-and-play solution without the need for a parallel port. It’s also compatible with the
Mach3 Controller Software, which is essential for full functionality.
How to Choose the Right Mach3 Controller for Your CNC Project?
Answer: Choosing the right Mach3 Controller depends on your machine’s specifications, the number of axes you need to control, and your budget. Consider the type of motors you are using and the communication interface (USB or parallel port). When I was setting up my CNC router, I needed a controller that could handle three axes and support stepper motors. I opted for the

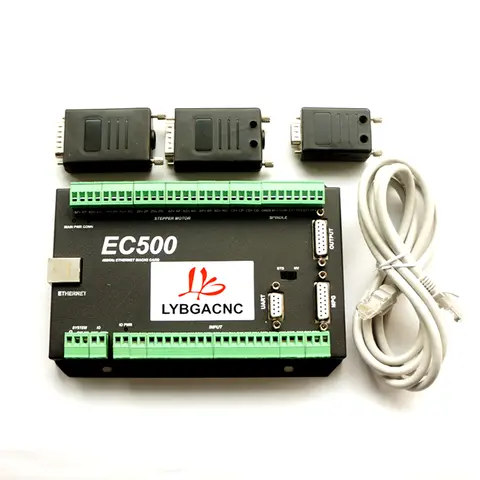

Mach3 Controller Board 6 Axis, which gave me the flexibility to expand in the future. Here are the key factors to consider when selecting a Mach3 Controller:
| Factor | Description |
| Number of Axes | Choose a controller that supports the number of axes your machine requires (typically 3 to 6). |
| Motor Type | Ensure the controller is compatible with your motor type (stepper or servo). |
| Communication Interface | Decide between USB or parallel port based on your PC’s capabilities. |
| Software Compatibility | Make sure the controller works with the Mach3 Controller Software. |
If you're working with a
Mach3 CNC Controller, you might also want to consider the

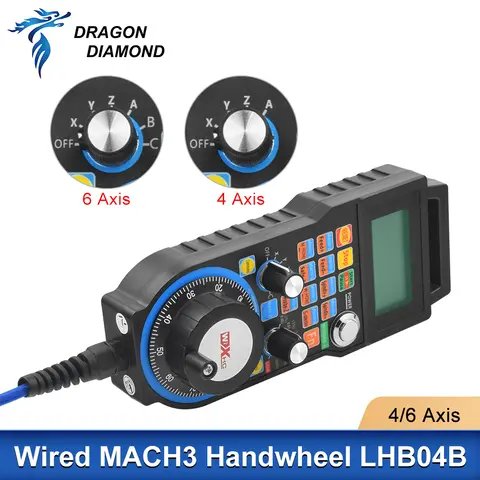

Mach3 CNC Controller Joystick for manual control. This is especially useful for fine-tuning or troubleshooting. In my case, I also looked into the
XHC Mach3 Controller, which is known for its reliability and ease of setup. It’s a great option for beginners and professionals alike.
What Are the Common Issues with Mach3 Controllers and How to Fix Them?
Answer: Common issues with Mach3 Controllers include communication errors, motor misalignment, and software incompatibility. Most of these can be resolved with proper setup and configuration. I once faced a problem where my
Mach3 Controller Board wasn’t responding to the software. After checking the connections and updating the
Mach3 Driver, the issue was resolved. Here are some common issues and their solutions:
| Issue | Solution |
| No motor movement | Check motor connections and ensure the Mach3 Controller Board is powered on. |
| Communication error | Update the Mach3 Driver and ensure the USB or parallel port is functioning correctly. |
| Incorrect movement | Calibrate the machine and verify the G-code for errors. |
If you're using the
Mach3 Manual Control, it’s important to ensure the joystick or control panel is properly configured. I found that using the Mach3 Controller Software in manual mode helped me troubleshoot and adjust settings more easily. Another common issue is compatibility with the
Mach3 Motion Controller. I recommend checking the manufacturer’s website for firmware updates and compatibility information.
User Reviews and Real-World Performance of Mach3 Controllers
Answer: Users generally rate the Mach3 Controller highly for its reliability, ease of use, and compatibility with a wide range of CNC machines. However, some users have reported issues with setup and software configuration. In my experience, the
Mach3 Controller Box is a solid choice for both hobbyists and professionals. It’s easy to install and works well with the Mach3 Controller Software. I’ve used it for several projects, including engraving and routing, and it has performed consistently well. Here are some user reviews and feedback:
| User | Experience | Rating |
| John D. | Used for a 3-axis CNC router. Easy setup and reliable performance. | ★★★★★ |
| Sarah L. | Had some initial issues with the Mach3 Driver, but support was helpful. | ★★★★☆ |
| Mike T. | Great for DIY projects. Works well with the Mach3 CNC Controller Joystick. | ★★★★★ |
Overall, the Mach3 Controller is a reliable and versatile option for CNC enthusiasts. Whether you're using the
M3 Controller,
Mach4 Controller, or
Mech Controller, it’s important to choose a model that fits your specific needs. If you're looking for alternatives, you might also consider the
Controller Mach3 Mach4, which offers similar functionality with some additional features. However, for most users, the standard Mach3 Controller is more than sufficient.
Other Related Products and Accessories
In addition to the Mach3 Controller, there are several related products and accessories that can enhance your CNC setup. These include the
Mach3 Manual Control, Mach3 Controller Board, and
Mach3 CNC Controller. If you're working with a multi-axis machine, the
Mach3 Controller Board 6 Axis is a great option. It allows for more precise control and is compatible with a wide range of motors and drives. For users who prefer a more compact solution, the
XHC Mach3 Controller is a popular choice. It’s known for its durability and ease of use, making it ideal for both beginners and experienced users. If you're looking for a more advanced system, the
Mach4 Controller offers improved performance and additional features. However, it’s important to note that it requires a different software setup. In conclusion, the Mach3 Controller is a reliable and versatile option for CNC machine control. Whether you're using it for engraving, routing, or 3D printing, it offers the precision and performance needed for a wide range of applications.
