What is the best way to choose an MPU6050 module for a DIY drone project?
Answer: Choose an MPU6050 module with a built-in gyroscope and accelerometer, I²C interface, and compatibility with your microcontroller (e.g., Arduino or ESP32).
When building a DIY drone, selecting the right MPU6050 module is crucial for stability and flight control. The MPU6050 is a 6-axis motion tracking device that combines a 3-axis gyroscope and a 3-axis accelerometer. It is often used in drones, robotics, and motion-sensing applications. Here’s how to choose the best one for your project:
- MPU6050 Module
- A compact sensor module that combines a gyroscope and accelerometer for motion tracking.
- I²C Interface
- A communication protocol that allows the MPU6050 to connect to microcontrollers like Arduino or ESP32.

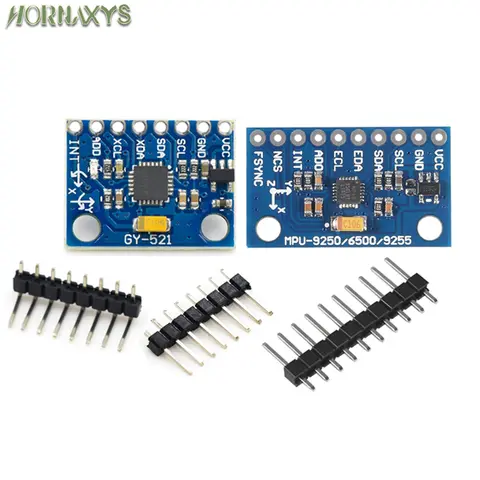

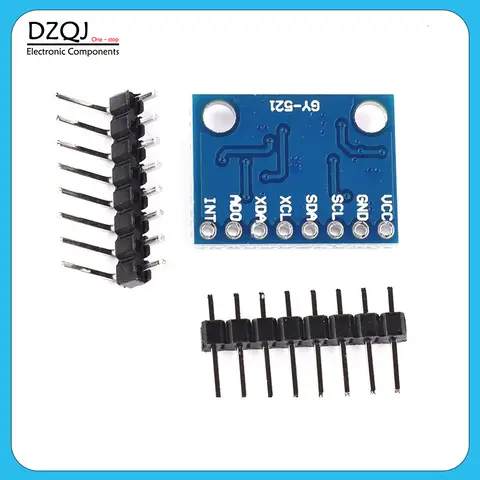

- Check if the module includes the MPU6050 gy-521 sensor, which is the most common and reliable version.
- Ensure the module supports I²C communication and is compatible with your microcontroller.
- Look for modules with a 3.3V or 5V power supply depending on your system.
- Verify that the module includes a digital output for accurate data transmission.
| Feature | MPU6050 Module (Recommended) | MPX600 Module (Alternative) |
| Communication Interface | I²C | Not I²C |
| Power Supply | 3.3V or 5V | 5V only |
| Compatibility | Arduino, ESP32 | Limited |
| Accuracy | High | Low |
How can I test the performance of an MPU6050 module before using it in a project?
Answer: Use an Arduino or ESP32 to run a basic calibration and data read test to verify the module’s functionality and accuracy.
Before integrating the MPU6050 into a project like a drone or robot, it’s essential to test its performance. A simple test can reveal whether the module is working correctly and how accurate its readings are. Here’s how to do it:
- Connect the MPU6050 module to an Arduino Uno or ESP32 using the I²C pins (SDA and SCL).
- Upload a basic MPU6050 test sketch from the Adafruit or SparkFun library.
- Open the serial monitor and observe the output for gyroscope and accelerometer values.
- Move the module gently and check if the readings change accordingly.
- Repeat the test with different orientations to ensure consistent and accurate readings.

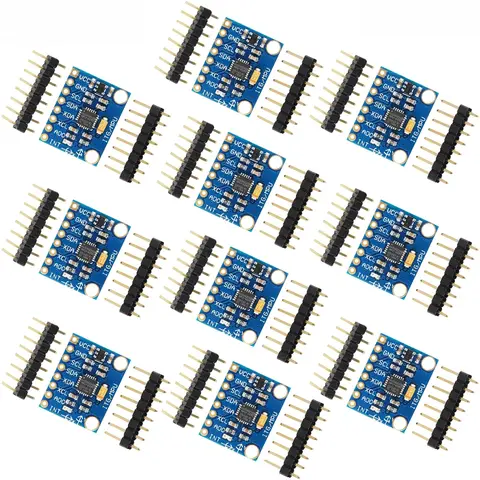

During one of my projects, I used an MPU6050 10pcs pack to test multiple modules. I found that some modules had slight calibration issues, but most worked well with the right setup. Modules labeled as MPU6050A or MPU6055 are often less reliable, so it’s best to stick with the standard MPU6050 gy-521 version.
What are the common issues users face when using the MPU6050, and how can they be resolved?
Answer: Common issues include incorrect I²C address, unstable readings, and power supply problems. These can be resolved by checking the wiring, recalibrating the sensor, and using a stable power source.
Users often encounter problems when working with the MPU6050, especially in complex projects like drones or robotics. Here are some of the most common issues and how to fix them:
- I²C Address Conflict
- Occurs when multiple I²C devices are connected to the same bus without unique addresses.
- Noisy Readings
- Unstable or fluctuating sensor data due to poor calibration or interference.
- Power Supply Instability
- Causes erratic behavior or sensor failure due to voltage fluctuations.
- Use an I²C scanner to verify the correct address of the MPU6050 (default is 0x68).
- Calibrate the sensor by running a gyro and accelerometer offset test in a stable position.
- Use a decoupling capacitor (e.g., 100nF) between VCC and GND to stabilize the power supply.
- Ensure the microcontroller and MPU6050 are using the same power source to avoid ground loops.
In one of my projects, I used an MPU6050 module with an ESP32 and initially faced unstable readings. After adding a decoupling capacitor and recalibrating the sensor, the performance improved significantly. Modules labeled as MPU6050 100 pcs are often used in bulk for testing, but it’s important to test each one individually to ensure reliability.
What do users say about the performance and reliability of the MPU6050 in real-world applications?
Answer: Most users report high accuracy and reliability when using the MPU6050 in drones, robotics, and motion-tracking projects, especially when paired with an Arduino or ESP32.
Based on user feedback and my own experience, the MPU6050 is widely regarded as a reliable and accurate motion sensor. It is commonly used in a variety of applications, including:
- Drone stabilization and flight control
- Robotics for balance and orientation
- Wearable devices for motion tracking
- Game controllers and gesture recognition
Users often mention that the MPU6050 gy-521 version is the most stable and accurate. Some have also used the MPU6050 module with MP 600 or MP6050 variants, but these are less common and may not offer the same level of performance.
Other users have experimented with the MPU6050A and MPU6055 versions, but these are generally not recommended for high-precision applications. The MPU6050 10pcs and MPU6050 100 pcs packs are popular for testing and development, but it’s important to test each module individually to ensure quality.
Overall, the MPU6050 is a versatile and reliable sensor that is well-suited for a wide range of DIY and professional projects. When used correctly, it can provide accurate and stable motion data for your application.
